材质：UPVC CPVC DIN

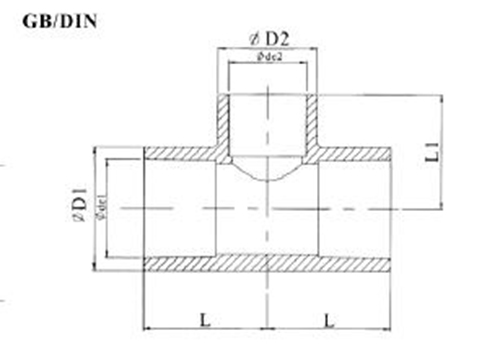

| Nom | d1 | d2 | d3 | d4 | d | d0 | D | D1 | I | I1 | L | H | |
| Size | |||||||||||||
| 25×20 | 25.30 | 24.90 | 20.30 | 19.90 | 22.00 | 17.00 | 32.20 | 26.00 | 19.00 | 16.00 | 65.00 | 29.50 | |
| 32×20 | 32.30 | 31.90 | 20.30 | 19.90 | 28.00 | 17.00 | 41.00 | 26.00 | 22.00 | 16.00 | 80.00 | 34.00 | |
| 32×25 | 32.30 | 31.90 | 25.30 | 24.90 | 28.00 | 22.00 | 41.00 | 32.20 | 22.00 | 19.00 | 80.00 | 37.00 | |
| 40×20 | 40.30 | 39.90 | 20.30 | 19.90 | 35.00 | 17.00 | 50.80 | 26.00 | 26.00 | 16.00 | 96.00 | 38.00 | |
| 40×25 | 40.30 | 39.90 | 25.30 | 24.90 | 35.00 | 22.00 | 50.80 | 32.20 | 26.00 | 19.00 | 96.00 | 41.00 | |
| 40×32 | 40.30 | 39.90 | 32.30 | 31.90 | 35.00 | 28.00 | 50.80 | 41.00 | 26.00 | 22.00 | 96.00 | 44.00 | |
| 50×20 | 50.30 | 49.90 | 20.30 | 19.90 | 44.00 | 17.00 | 63.40 | 26.00 | 31.00 | 16.00 | 116.00 | 43.00 | |
| 50×25 | 50.30 | 49.90 | 25.30 | 24.90 | 44.00 | 22.00 | 63.40 | 32.20 | 31.00 | 19.00 | 116.00 | 46.00 | |
| 50×32 | 50.30 | 49.90 | 32.30 | 31.90 | 44.00 | 28.00 | 63.40 | 41.00 | 31.00 | 22.00 | 116.00 | 49.00 | |
| 50×40 | 50.30 | 49.90 | 40.30 | 39.90 | 44.00 | 35.00 | 63.40 | 50.80 | 31.00 | 26.00 | 116.00 | 53.00 | |
| 63×20 | 63.30 | 62.90 | 20.30 | 19.90 | 56.00 | 17.00 | 79.60 | 26.00 | 38.00 | 16.00 | 143.00 | 49.50 | |
| 63×25 | 63.30 | 62.90 | 25.30 | 24.90 | 56.00 | 22.00 | 79.60 | 32.20 | 38.00 | 19.00 | 143.00 | 52.50 | |
| 63×32 | 63.30 | 62.90 | 32.30 | 31.90 | 56.00 | 28.00 | 79.60 | 41.00 | 38.00 | 22.00 | 143.00 | 55.50 | |
| 63×40 | 63.30 | 62.90 | 40.30 | 39.90 | 56.00 | 35.00 | 79.60 | 50.80 | 38.00 | 26.00 | 143.00 | 59.50 | |
| 63×50 | 63.30 | 62.90 | 50.30 | 49.90 | 56.00 | 44.00 | 79.60 | 63.40 | 38.00 | 31.00 | 143.00 | 64.50 | |
| 75×32 | 75.35 | 74.90 | 32.30 | 31.90 | 73.50 | 28.00 | 95.00 | 41.00 | 44.00 | 22.00 | 168.00 | 62.00 | |
| 75×40 | 75.35 | 74.90 | 40.30 | 39.90 | 73.50 | 35.00 | 95.00 | 50.80 | 44.00 | 26.00 | 168.00 | 66.00 | |
| 75×50 | 75.35 | 74.90 | 50.30 | 49.90 | 73.50 | 44.00 | 95.00 | 63.40 | 44.00 | 31.00 | 168.00 | 71.00 | |
| 75×63 | 75.35 | 74.90 | 63.30 | 62.90 | 73.50 | 56.00 | 95.00 | 79.60 | 44.00 | 38.00 | 168.00 | 78.00 | |
| 90×32 | 90.50 | 89.90 | 32.30 | 31.90 | 87.00 | 28.00 | 114.00 | 41.00 | 51.00 | 22.00 | 198.00 | 70.00 | |
| 90×40 | 90.50 | 89.90 | 40.30 | 39.90 | 87.00 | 35.00 | 114.00 | 50.80 | 51.00 | 26.00 | 198.00 | 74.00 | |
| 90×50 | 90.50 | 89.90 | 50.30 | 49.90 | 87.00 | 44.00 | 114.00 | 63.40 | 51.00 | 31.00 | 198.00 | 79.00 | |
| 90×63 | 90.50 | 89.90 | 63.30 | 62.90 | 87.00 | 56.00 | 114.00 | 79.60 | 51.00 | 38.00 | 198.00 | 86.00 | |
| 90×75 | 90.50 | 89.90 | 75.35 | 74.90 | 87.00 | 73.50 | 114.00 | 95.00 | 51.00 | 44.00 | 198.00 | 92.00 | |
| 110×32 | 110.60 | 109.90 | 32.30 | 31.90 | 108.00 | 28.00 | 135.00 | 41.00 | 61.00 | 22.00 | 238.00 | 80.00 | |
| 110×50 | 110.60 | 109.90 | 50.30 | 49.90 | 108.00 | 44.00 | 135.00 | 63.40 | 61.00 | 31.00 | 238.00 | 89.00 | |
| 110×63 | 110.60 | 109.90 | 63.30 | 62.90 | 108.00 | 56.00 | 135.00 | 79.60 | 61.00 | 38.00 | 238.00 | 96.00 | |
| 110×75 | 110.60 | 109.90 | 75.35 | 74.90 | 108.00 | 73.50 | 135.00 | 95.00 | 61.00 | 44.00 | 238.00 | 102.00 | |
| 110×90 | 110.60 | 109.90 | 90.50 | 89.90 | 108.00 | 87.00 | 135.00 | 114.00 | 61.00 | 51.00 | 238.00 | 109.00 | |
| 140×63 | 140.85 | 140.05 | 63.30 | 62.90 | 136.00 | 56.00 | 163.00 | 79.60 | 76.00 | 38.00 | 298.00 | 111.00 | |
| 160×63 | 160.85 | 160.05 | 63.30 | 62.90 | 158.40 | 56.00 | 186.00 | 79.60 | 86.00 | 38.00 | 338.00 | 121.00 | |
| 160×75 | 160.85 | 160.05 | 75.35 | 74.90 | 158.40 | 73.50 | 186.00 | 95.00 | 86.00 | 44.00 | 338.00 | 127.00 | |
| 160×90 | 160.85 | 160.05 | 90.50 | 89.90 | 158.40 | 87.00 | 186.00 | 114.00 | 86.00 | 51.00 | 338.00 | 134.00 | |
| 160×110 | 160.85 | 160.05 | 110.60 | 109.90 | 158.40 | 108.00 | 186.00 | 135.00 | 86.00 | 61.00 | 338.00 | 144.00 | |
| 160×140 | 160.85 | 160.05 | 140.85 | 140.05 | 158.40 | 136.00 | 186.00 | 163.00 | 86.00 | 76.00 | 338.00 | 160.00 | |
| 225×90 | 226.25 | 225.05 | 90.50 | 89.90 | 223.00 | 87.00 | 261.00 | 114.00 | 119.00 | 51.00 | 469.00 | 166.50 | |
| 225×110 | 226.25 | 225.05 | 110.60 | 109.90 | 223.00 | 108.00 | 261.00 | 135.00 | 119.00 | 61.00 | 469.00 | 176.50 | |
| 225×140 | 226.25 | 225.05 | 140.85 | 140.05 | 223.00 | 136.00 | 261.00 | 163.00 | 119.00 | 76.00 | 469.00 | 192.50 | |
| 225×160 | 226.25 | 225.05 | 160.85 | 160.05 | 223.00 | 158.40 | 261.00 | 186.00 | 119.00 | 86.00 | 469.00 | 201.50 | |
| 250×110 | 251.45 | 250.05 | 110.60 | 109.90 | 239.00 | 108.00 | 290.00 | 135.00 | 131.00 | 61.00 | 518.00 | 195.50 | |
| 250×140 | 251.45 | 250.05 | 140.85 | 140.05 | 239.00 | 136.00 | 290.00 | 163.00 | 131.00 | 76.00 | 518.00 | 210.50 | |
| 250×160 | 251.45 | 250.05 | 160.85 | 160.05 | 239.00 | 158.40 | 290.00 | 186.00 | 131.00 | 86.00 | 518.00 | 220.50 | |
| 250×225 | 251.45 | 250.25 | 226.25 | 225.05 | 239.00 | 223.00 | 290.00 | 261.00 | 131.00 | 119.00 | 518.00 | 255.50 | |
| 315×110 | 316.85 | 315.05 | 110.60 | 109.90 | 304.00 | 108.00 | 364.00 | 135.00 | 163.00 | 61.00 | 652.00 | 228.00 | |
| 315×140 | 316.85 | 315.05 | 140.85 | 140.05 | 304.00 | 136.00 | 364.00 | 163.00 | 163.00 | 76.00 | 652.00 | 243.00 | |
| 315×160 | 316.85 | 315.05 | 160.85 | 160.05 | 304.00 | 158.40 | 364.00 | 186.00 | 163.00 | 86.00 | 652.00 | 253.00 | |
| 315×225 | 316.85 | 315.05 | 226.25 | 225.05 | 304.00 | 223.00 | 364.00 | 261.00 | 163.00 | 119.00 | 652.00 | 286.00 | |
| 315×250 | 316.85 | 315.05 | 251.45 | 250.05 | 304.00 | 239.00 | 364.00 | 290.00 | 163.00 | 131.00 | 652.00 | 298.0 | |
