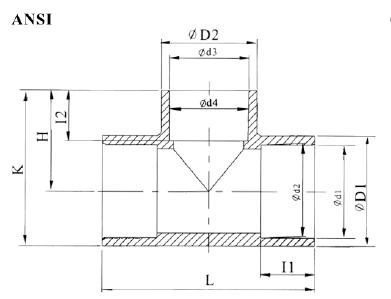

| Size | D1 | D2 | d1 | d2 | I1 | d3 | d4 | 12 | L | H | K |
| 3/4"×3/4"×1/2" | 37.00 | 31.70 | 26.87 | 26.57 | 27.40 | 21.54 | 21.23 | 24.22 | 86.40 | 38.50 | 57.00 |
| 1"×1"×1/2" | 44.00 | 30.00 | 33.66 | 33.27 | 30.58 | 21.54 | 21.23 | 24.22 | 96.20 | 41.00 | 63.00 |
| 1"×1"×3/4" | 44.00 | 35.00 | 33.66 | 33.27 | 30.58 | 26.87 | 26.57 | 27.40 | 96.00 | 44.50 | 66.50 |
| 1"×1"×2" | 44.00 | 73.00 | 33.66 | 33.27 | 30.58 | 60.63 | 60.17 | 41.10 | 96.00 | 65.00 | 87.00 |
| 1-1/4"×1-1/4"×1/2" | 54.00 | 30.50 | 42.42 | 42.04 | 34.75 | 21.54 | 21.23 | 24.22 | 115.50 | 44.50 | 71.50 |
| 1-1/4"×1-1/4"×3/4" | 54.00 | 35.00 | 42.42 | 42.04 | 34.75 | 26.87 | 26.57 | 27.40 | 115.50 | 48.00 | 75.00 |
| 1-1/4"×1-1/4"×1" | 54.00 | 44.00 | 42.42 | 42.04 | 34.75 | 33.66 | 33.27 | 30.58 | 115.50 | 52.00 | 79.00 |
| 1-1/2"×1-1/2"×1/2" | 60.00 | 30.50 | 48.56 | 48.00 | 37.93 | 21.54 | 21.23 | 24.22 | 128.00 | 48.50 | 78.50 |
| 1-1/2"×1-1/2"×3/4" | 60.00 | 35.00 | 48.56 | 48.11 | 37.93 | 26.87 | 26.57 | 27.40 | 128.00 | 52.00 | 82.00 |
| 1-1/2"×1-1/2"×1" | 60.00 | 44.00 | 48.56 | 48.11 | 37.93 | 33.66 | 33.27 | 30.58 | 128.00 | 55.50 | 85.50 |
| 1-1/2"×1-1/2"×1-1/4" | 60.00 | 54.00 | 48.56 | 48.11 | 37.93 | 42.42 | 42.04 | 34.75 | 127.40 | 60.00 | 90.00 |
| 2"×2"×1/2" | 75.00 | 30.50 | 60.63 | 60.17 | 41.10 | 21.54 | 21.23 | 24.22 | 146.00 | 54.00 | 91.50 |
| 2"×2"×3/4" | 75.00 | 35.00 | 60.63 | 60.17 | 41.10 | 26.87 | 26.57 | 27.40 | 146.00 | 57.50 | 95.00 |
| 2"×2"×1" | 75.00 | 44.00 | 60.63 | 60.17 | 41.10 | 33.66 | 33.27 | 30.58 | 146.00 | 60.50 | 98.00 |
| 2"×2"×1-1/4" | 75.00 | 54.00 | 60.63 | 60.17 | 41.10 | 42.42 | 42.04 | 34.75 | 146.00 | 65.00 | 102.50 |
| 2"×2"×1-1/2" | 73.00 | 60.00 | 60.63 | 60.17 | 41.10 | 48.56 | 48.11 | 37.93 | 145.50 | 69.00 | 105.50 |
| 2-1/2"×2-1/2"×1" | 89.00 | 44.00 | 73.38 | 72.85 | 47.45 | 33.66 | 33.27 | 30.58 | 171.10 | 67.50 | 113.00 |
| 2-1/2"×2-1/2"×1-1/4" | 89.00 | 56.00 | 73.38 | 72.85 | 47.45 | 42.42 | 42.04 | 34.75 | 171.00 | 72.00 | 117.50 |
| 2-1/2"×2-1/2"×1-1/2" | 89.00 | 60.00 | 73.38 | 72.85 | 47.45 | 48.56 | 48.11 | 37.93 | 171.10 | 75.00 | 120.50 |
| 2-1/2"×2-1/2"×2" | 89.00 | 73.00 | 73.38 | 72.85 | 47.45 | 60.63 | 60.17 | 41.10 | 171.10 | 79.00 | 124.50 |
| 3"×3"×1" | 105.00 | 44.00 | 89.31 | 88.70 | 50.63 | 33.66 | 33.27 | 30.58 | 197.26 | 78.00 | 131.50 |
| 3"×3"×1-1/2" | 105.00 | 60.00 | 89.31 | 88.70 | 50.63 | 48.56 | 48.11 | 37.93 | 197.26 | 83.00 | 138.50 |
| 3"×3"×2" | 105.00 | 73.00 | 89.31 | 88.70 | 50.63 | 60.63 | 60.17 | 41.10 | 196.00 | 95.00 | 147.50 |
| 3"×3"×2-1/2" | 105.00 | 89.00 | 89.31 | 88.70 | 50.63 | 73.34 | 72.85 | 47.45 | 196.00 | 95.00 | 147.50 |
| 4"×4"×1" | 132.00 | 44.00 | 114.76 | 114.07 | 60.15 | 33.66 | 33.27 | 30.58 | 238.30 | 90.00 | 157.00 |
| 4"×4"×1-1/2" | 132.00 | 60.00 | 114.76 | 114.07 | 60.15 | 48.56 | 48.11 | 37.93 | 238.30 | 97.50 | 164.50 |
| 4"×4"×2" | 132.00 | 73.00 | 114.76 | 114.07 | 60.15 | 60.63 | 60.17 | 41.11 | 238.00 | 97.00 | 163.00 |
| 4"×4"×2-1/2" | 132.00 | 89.00 | 114.76 | 114.07 | 60.15 | 73.38 | 72.85 | 47.45 | 238.30 | 104.50 | 171.50 |
| 4"×4"×3" | 132.00 | 105.00 | 114.76 | 114.07 | 60.15 | 89.31 | 88.71 | 50.63 | 238.00 | 110.00 | 176.00 |
| 5"×5"×2" | 162.00 | 75.00 | 140.76 | 140.07 | 70.00 | 60.63 | 60.17 | 41.10 | 298.00 | 114.00 | 195.00 |
| 6"×6"×2" | 191.00 | 75.00 | 168.83 | 168.00 | 79.20 | 60.63 | 60.71 | 41.10 | 338.00 | 130.00 | 225.50 |
| 6"×6"×2" | 191.00 | 132.00 | 168.83 | 168.00 | 79.20 | 114.76 | 114.07 | 60.15 | 338.00 | 145.00 | 240.50 |
| 8"×8"×2" | 246.00 | 75.00 | 219.84 | 218.70 | 104.60 | 60.63 | 60.17 | 41.15 | 439.20 | 151.00 | 274.00 |
| 8"×8"×3" | 246.00 | 105.00 | 219.84 | 218.70 | 104.60 | 89.30 | 88.70 | 50.63 | 439.20 | 160.00 | 283.00 |
| 8"×8"×4" | 246.00 | 132.00 | 219.84 | 218.70 | 104.60 | 114.76 | 114.07 | 60.15 | 439.20 | 170.00 | 293.00 |
| 8"×8"×6" | 246.00 | 191.00 | 219.84 | 218.70 | 104.60 | 168.83 | 168.00 | 79.20 | 439.20 | 194.00 | 317.00 |
| 10"×10"×2" | 307.00 | 74.00 | 273.81 | 272.67 | 130.00 | 60.63 | 60.17 | 41.10 | 560.00 | 185.00 | 338.50 |
| 10"×10"×3" | 307.00 | 107.00 | 273.81 | 272.67 | 130.00 | 89.31 | 88.70 | 50.60 | 560.00 | 194.00 | 347.50 |
| 10"×10"×4" | 307.00 | 134.00 | 273.81 | 272.67 | 130.00 | 114.76 | 114.07 | 60.20 | 560.00 | 205.00 | 358.50 |
| 10"×10"×6" | 307.00 | 193.00 | 273.81 | 272.67 | 130.00 | 168.83 | 168.00 | 79.20 | 560.00 | 225.00 | 378.50 |
| 10"×10"×8" | 307.00 | 248.00 | 273.81 | 272.67 | 130.00 | 219.84 | 218.69 | 104.35 | 560.00 | 250.00 | 403.50 |
| 12"×12"×2" | 364.00 | 74.00 | 324.61 | 323.50 | 155.00 | 60.63 | 60.17 | 41.10 | 660.00 | 215.00 | 397.00 |
| 12"×12"×3" | 364.00 | 107.00 | 324.61 | 323.50 | 155.00 | 89.31 | 88.31 | 50.60 | 660.00 | 225.00 | 407.00 |
| 12"×12"×4" | 364.00 | 136.00 | 324.61 | 323.50 | 155.00 | 114.76 | 144.07 | 60.20 | 660.00 | 235.00 | 417.00 |
| 12"×12"×6" | 364.00 | 195.00 | 324.61 | 323.50 | 155.00 | 168.83 | 168.00 | 79.20 | 660.00 | 255.00 | 437.00 |
| 12"×12"×8" | 364.00 | 248.00 | 324.61 | 323.50 | 155.00 | 219.84 | 218.69 | 104.40 | 660.00 | 280.00 | 462.00 |
| 12"×12"×10" | 364.00 | 308.00 | 324.61 | 323.50 | 155.00 | 273.81 | 272.67 | 130.00 | 660.00 | 305.00 | 487.00 |
| 14"×14"×4" | 396.50 | 133.00 | 356.49 | 355.20 | 180.00 | 114.76 | 114.07 | 60.15 | 856.50 | 290.00 | 488.25 |
| 14"×14"×6" | 396.50 | 195.00 | 356.49 | 355.22 | 180.00 | 168.83 | 168.00 | 79.20 | 856.00 | 308.00 | 500.00 |
| 14"×14"×8" | 396.50 | 248.00 | 356.49 | 355.22 | 180.00 | 219.84 | 218.69 | 104.40 | 856.00 | 337.00 | 529.00 |
| 14"×14"×10" | 396.50 | 308.00 | 356.49 | 355.22 | 180.00 | 273.81 | 272.67 | 130.00 | 856.00 | 362.00 | 554.00 |
| 14"×14"×12" | 396.50 | 364.00 | 356.49 | 355.22 | 180.00 | 324.61 | 323.47 | 155.00 | 856.50 | 390.00 | 588.25 |
