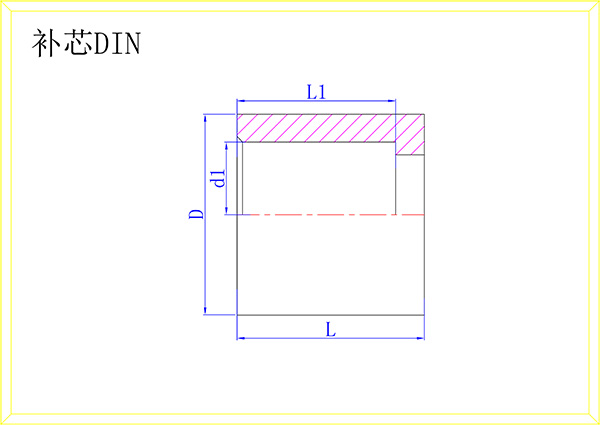

D | d2 | I | H | d | L | L1 |
| 1/2 "× 1/4 | 21.34 | 13.61 | 19.00 | 30.00 | 10.00 | 29.00 | 23.00 |
| 1/2 "× 3/8 | 21.34 | 17.45 | 22.00 | 30.00 | 12.00 | 29.00 | 23.00 |
| 3/4 "× 1/2 | 26.67 | 21.23 | 24.00 | 30.00 | 13.00 | 33.00 | 27.00 |
| 1 "× 3/8 | 33.40 | 17.04 | 22.00 | 36.00 | 12.00 | 38.00 | 30.00 |
| 1 "× 1/2 | 33.40 | 21.23 | 24.00 | 36.00 | 16.00 | 38.00 | 30.00 |
| 1 "× 3/4 | 33.40 | 26.57 | 28.00 | 36.00 | 18.00 | 38.00 | 30.00 |
| 1-1/4 "× 1/2 | 42.16 | 21.23 | 24.22 | 46.00 | 16.00 | 44.00 | 35.00 |
| 1-1/4 "× 3/4 | 42.16 | 26.57 | 27.40 | 46.00 | 22.00 | 44.00 | 35.00 |
| 1-1/4 "× 1 | 42.16 | 33.27 | 30.58 | 46.00 | 28.00 | 44.00 | 35.00 |
| 1-1/2 "× 1/2 | 48.26 | 21.23 | 24.22 | 55.00 | 16.00 | 47.00 | 38.00 |
| 1-1/2 "× 3/4 | 48.26 | 26.57 | 27.40 | 55.00 | 22.00 | 47.00 | 38.00 |
| 1-1/2 "× 1 | 48.26 | 33.27 | 30.58 | 55.00 | 28.00 | 47.00 | 36.00 |
| 1-1/2"× 1-1/4" | 48.26 | 42.04 | 34.75 | 55.00 | 35.00 | 47.00 | 36.00 |
| 2 "× 1/2 | 60.33 | 21.23 | 24.22 | 70.00 | 16.00 | 52.00 | 42.00 |
| 2 "× 3/4 | 60.33 | 26.57 | 27.40 | 70.00 | 22.00 | 52.00 | 42.00 |
| 2 "× 1 | 60.32 | 33.27 | 30.58 | 65.00 | 28.00 | 52.00 | 42.00 |
| 2 "× 1-1/4 " | 60.33 | 42.04 | 34.75 | 70.00 | 35.00 | 52.00 | 42.00 |
| 2 "× 1-1/2 | 60.32 | 48.11 | 37.93 | 65.00 | 43.00 | 52.00 | 42.00 |
| 2-1/2 "× 1-1/2 " | 73.03 | 48.11 | 37.93 | 80.00 | 43.00 | 60.00 | 48.45 |
| 2-1/2 "× 2 " | 73.03 | 60.17 | 41.10 | 80.00 | 54.00 | 60.00 | 47.50 |
| 3 "× 1-1/2 | 88.90 | 48.11 | 37.93 | 80.00 | 54.00 | 60.00 | 48.45 |
| 3 "× 2 | 88.90 | 60.17 | 41.10 | 99.00 | 54.00 | 65.00 | 51.00 |
| 3 "× 2-1/2 | 88.90 | 72.85 | 47.45 | 99.00 | 65.00 | 65.00 | 51.00 |
| 4 "× 2 | 114.30 | 60.17 | 41.10 | 125.00 | 64.00 | 75.00 | 60.50 |
| 4 "× 2-1/2 | 114.30 | 72.85 | 47.45 | 125.00 | 65.00 | 75.00 | 60.50 |
| 4 "× 3 | 114.30 | 88.70 | 50.63 | 125.00 | 80.00 | 75.00 | 60.50 |
| 5 "× 4 | 141.30 | 114.09 | 60.15 | 145.00 | 100.00 | 84.00 | 69.60 |
|
6 "× 3 |
168.28 | 88.70 | 50.60 | 180.00 | 80.00 | 90.00 | 76.50 |
| 6 "× 4 | 168.28 | 114.07 | 60.15 | 180.00 | 100.00 | 90.00 | 76.50 |
| 6 "× 5 | 168.28 | 141.04 | 69.66 | 180.00 | 125.00 | 90.00 | 76.50 |
| 8 "× 4 | 219.10 | 114.07 | 60.50 | 235.00 | 105.00 | 120.00 | 104.60 |
| 8 "× 6 | 219.10 | 168.00 | 79.00 | 235.00 | 150.00 | 120.00 | 104.60 |
| 10 "× 3 | 273.05 | 88.70 | 50.60 | 280.00 | 105.00 | 148.00 | 130.00 |
| 10 "× 4 | 273.05 | 114.04 | 60.20 | 280.00 | 105.00 | 148.00 | 130.00 |
| 10 "× 6 | 273.05 | 168.00 | 79.20 | 280.00 | 150.00 | 148.00 | 130.00 |
| 10 "× 8 | 273.05 | 218.69 | 105.00 | 280.00 | 200.00 | 148.00 | 130.00 |
| 12 "× 4 | 323.85 | 114.07 | 60.20 | 330.00 | 100.00 | 175.00 | 155.00 |
| 12 "× 6 | 323.85 | 168.00 | 79.20 | 330.00 | 150.00 | 175.00 | 155.00 |
| 12 "× 8 | 323.85 | 222.89 | 105.00 | 330.00 | 200.00 | 175.00 | 155.00 |
| 12 "× 10 | 323.85 | 272.67 | 130.00 | 330.00 | 245.00 | 175.00 | 155.00 |
