商品名称：对焊异径三通
商品编号：
上架时间：2014-06-25
浏览次数：51

QQ交流

商品详情：

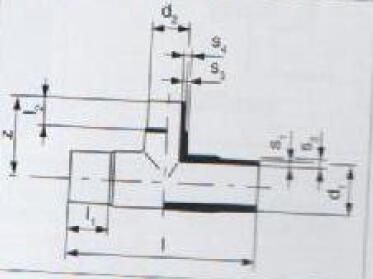

d 1	d 2	l	l 1	l 2	z	PN6/SDR17.6				PN10/SDR11				PN16/SDR7.25
d 1	d 2	l	l 1	l 2	z	S 1	S 2	S 3	S 4	S 1	S 2	S 3	S 4	S 1	S 2	S 3	S 4
90	32	203 ±4	52 ±2	23 ±2	85 ±2	5.1	8.1	3.0	5.0	8.2	14.2	3.0	6.3	12.5	19.0	4.5	7.0
90	50	203 ±4	52 ±2	27 ±2	93 ±2	5.1	10.0	2.9	5.0	8.2	14.0	4.6	8.4	12.5	19.0	6.9	9.5
90	63	203 ±4	53 ±2	31 ±2	95 ±2	5.1	11.1	3.6	7.0	8.2	14.2	5.8	9.0	12.5	19.0	8.7	13.6
110	32	230 ±4	65 ±2	23 ±2	100 ±2	6.3	12.9	3.0	5.0	10.0	16.6	3.0	6.1	15.2	20.6	4.5	7.0
110	50	230 ±4	65 ±2	27 ±2	113 ±2	6.3	12.7	2.9	6.0	10.0	16.5	4.6	8.5	15.2	20.6	6.9	9.5
110	63	230 ±4	65 ±2	31 ±2	107 ±2	6.3	12.0	3.6	8.0	10.0	16.8	5.8	10.0	15.2	20.6	8.7	13.6
110	90	230 ±4	40 ±2	40 ±2	115 ±3	6.3	11.3	5.1	10.0	10.0	17.2	8.2	16.4	15.2	20.6	12.5	18.7
125	63	265 ±4	70 ±2	31 ±2	112 ±3	7.1	14.9	3.6	8.0	11.4	18.6	5.8	11.3	17.2	22.0	8.7	13.6
125	90	265 ±4	45 ±2	40 ±2	120 ±3	7.1	15.7	5.1	11.0	11.4	20.4	8.2	14.0	17.2	22.0	12.5	18.7
140	63	290 ±4	82 ±2	32 ±2	120 ±3	8.0	15.1	3.6	8.0	12.8	20.7	5.8	11.5	19.3	26.7	8.7	13.6
140	75	290 ±4	82 ±2	35 ±2	130 ±3	8.0	13.9	4.3	9.0	12.8	18.0	6.9	11.0	19.3	26.7	10.4	15.4
140	90	290 ±4	82 ±2	38 ±2	130 ±3	8.0	14.9	5.1	10.0	12.8	19.2	8.2	13.2	19.3	26.7	12.5	18.7
140	110	290 ±4	50 ±2	43 ±2	137 ±3	8.0	16.2	6.3	13.0	12.8	21.6	10.0	17.5	19.3	26.7	15.2	20.6
160	63	315 ±4	84 ±2	32 ±2	132 ±3	9.1	15.4	3.6	9.0	14.6	20.1	5.8	12.0	22.0	27.5	8.7	13.6
160	90	315 ±4	84 ±3	39 ±2	140 ±3	9.1	15.7	5.1	11.0	14.6	19.0	8.2	15.0	22.0	27.5	12.5	18.7
160	110	315 ±4	84 ±3	63 ±5	158 ±3	9.1	16.4	6.3	12.0	14.6	21.3	10.0	17.3	22.0	27.5	15.2	20.6
160	125	315 ±4	59 ±3	48 ±2	150 ±3	9.1	15.6	7.1	13.0	14.6	20.5	11.4	18.2	22.0	27.5	17.2	22.0
180	63	348 ±4	125 ±3	32 ±2	140 ±3	10.2	16.1	3.6	8.0	16.4	20.8	5.8	11.9	24.8	32.6	8.7	13.6
180	75	348 ±4	115 ±3	31 ±2	140 ±3	10.2	16.2	4.3	7.0	16.4	22.0	6.9	10.5	24.8	32.6	10.4	15.4
180	90	348 ±4	108 ±3	38 ±2	145 ±3	10.2	15.1	5.1	11.0	16.4	22.0	8.2	15.3	24.8	32.6	12.5	18.7
180	110	348 ±4	102 ±3	43 ±2	150 ±3	10.2	16.0	6.3	12.0	16.4	22.0	10.0	16.2	24.8	32.6	15.2	20.6
180	125	348 ±4	93 ±3	50 ±2	155 ±3	10.2	16.2	7.1	14.0	16.4	22.7	11.4	18.8	24.8	32.6	17.2	22.0
200	63	388 ±4	145 ±3	32 ±2	150 ±4	11.4	17.7	3.6	8.0	18.2	24.9	5.8	11.5	27.6	34.2	8.7	13.6
200	90	388 ±4	125 ±3	38 ±2	163 ±4	11.4	17.3	5.1	11.0	18.2	25.1	6.2	15.0	27.6	34.2	10.4	15.4
200	110	388 ±4	120 ±3	33 ±2	155 ±4	11.4	20.1	6.3	13.0	18.2	25.6	10.0	16.6	27.6	34.2	15.2	20.6
200	125	388 ±4	115 ±3	43 ±2	165 ±4	11.4	19.3	7.1	14.0	18.2	25.8	11.4	18.4	27.6	34.2	17.2	22.0
200	160	388 ±6	98 ±3	53 ±2	178 ±4	11.4	20.1	9.1	16.8	18.2	27.3	14.6	22.6	27.6	34.2	22.0	27.5
225	90	435 ±6	153 ±3	40 ±2	168 ±4	12.8	19.9	5.1	11.7	20.5	25.5	8.2	13.2	31.0	37.0	12.5	18.7
225	110	435 ±6	142 ±3	33 ±2	165 ±4	12.8	19.6	6.3	13.0	20.5	26.0	10.0	17.0	31.0	37.0	15.2	20.6
225	125	435 ±6	136 ±3	40 ±2	173 ±4	12.8	20.1	7.1	14.0	20.5	27.5	11.4	19.3	31.0	37.0	17.2	22.0
225	160	435 ±6	115 ±3	68 ±2	190 ±4	12.8	20.4	9.1	17.1	20.5	28.4	14.6	22.8	31.0	37.0	22.0	27.5
250	110	435 ±6	134 ±3	37 ±2	195 ±4	14.2	20.2	6.3	13.0	22.8	28.3	10.0	16.0	34.5	40.2	15.2	20.6
250	160	440 ±6	115 ±3	58 ±2	213 ±4	14.2	22.1	9.1	15.0	22.8	30.6	14.6	21.0	34.5	40.2	22.0	27.5
