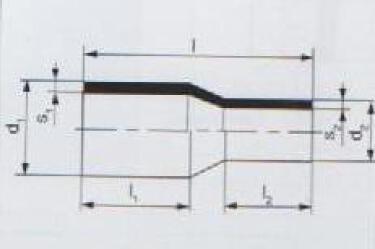

| d 1 ×d 2 | l 1 | l 2 | l | SDR17.6/PN6 | SDR11/PN10 | SDR7.25/PN16 |
| S 1 /S 2 | S 1 /S 2 | S 1 /S 2 | ||||
| 25×20 | 40 ± 1.5 | 41 ± 1.5 | 87 ± 2.5 | 2.7/2.5 | 3.5/2.8 | |
| 32×20 | 44 ± 1.5 | 39 ± 1.5 | 95 ± 2.5 | 3.0/2.5 | 4.5/2.8 | |
| 32×25 | 45 ± 1.5 | 40 ± 1.5 | 95 ± 2.5 | 3.0/2.7 | 4.5/3.5 | |
| 40×20 | 49 ± 1.5 | 39 ± 1.5 | 104 ± 2.5 | 3.7/2.5 | 5.6/2.8 | |
| 40×25 | 49 ± 1.5 | 41 ± 1.5 | 105 ± 2.5 | 3.7/2.7 | 5.6/3.5 | |
| 40×32 | 49 ± 1.5 | 44 ± 1.5 | 105 ± 2.5 | 3.7/3.0 | 5.6/4.5 | |
| 50×25 | 57 ± 1.5 | 43 ± 1.5 | 120 ± 2.5 | 4.6/2.7 | 6.9/3.5 | |
| 50×32 | 59 ± 1.5 | 46 ± 1.5 | 122 ± 2.5 | 4.6/3.0 | 6.9/4.5 | |
| 50×40 | 57 ± 1.5 | 49 ± 1.5 | 126 ± 2.5 | 4.6/3.7 | 6.9/5.6 | |
| 63×32 | 64 ± 1.5 | 49 ± 1.5 | 136 ± 2.5 | 5.8/3.0 | 8.7/4.5 | |
| 63×40 | 59 ± 1.5 | 50 ± 1.5 | 129 ± 2.5 | 5.8/3.7 | 8.7/5.6 | |
| 63×50 | 66 ± 1.5 | 59 ± 1.5 | 151 ± 2.5 | 5.8/4.6 | 8.7/6.9 | |
| 75×50 | 64 ± 1.5 | 55 ± 1.5 | 148 ± 2.5 | 4.3/2.9 | 6.9/4.6 | 10.4/6.9 |
| 75×63 | 65 ± 1.5 | 59 ± 1.5 | 149 ± 2.5 | 4.3/3.6 | 6.9/5.8 | 10.4/8.7 |
| 90×63 | 72 ± 1.5 | 63 ± 1.5 | 159 ± 2.5 | 5.1/3.6 | 8.2/5.8 | 12.5/8.7 |
| 90×75 | 79 ± 1.5 | 61 ± 1.5 | 163 ± 2.5 | 6.3/4.3 | 8.2/6.9 | 12.5/10.4 |
| 110×63 | 83 ± 1.5 | 63 ± 1.5 | 181 ± 2.5 | 6.3/3.6 | 10.0/5.8 | 15.2/8.7 |
| 110×90 | 83 ± 1.5 | 74 ± 1.5 | 179 ± 2.5 | 6.3/5.1 | 10.0/8.2 | 15.2/12.5 |
| 125×63 | 91 ± 2 | 63 ± 2 | 193 ± 4 | 7.1/3.6 | 11.4/5.8 | 17.2/8.7 |
| 125×90 | 90 ± 2 | 74 ± 2 | 191 ± 4 | 7.1/5.1 | 11.4/8.2 | 17.2/12.5 |
| 125×110 | 90 ± 2 | 82 ± 2 | 201 ± 4 | 7.1/6.3 | 11.4/10.0 | 17.2/15.2 |
| 140×125 | 97 ± 2 | 94 ± 2 | 216 ± 4 | 8.0/7.1 | 12.8/11.4 | 19.3/17.2 |
| 160×90 | 103 ± 2 | 79 ± 2 | 221 ± 4 | 9.1/5.1 | 14.6/8.2 | 22.0/12.5 |
| 160×110 | 98 ± 2 | 88 ± 2 | 225 ± 4 | 9.1/6.3 | 14.6/10.0 | 22.0/15.2 |
| 160×125 | 98 ± 2 | 92 ± 2 | 231 ± 4 | 9.1/7.1 | 14.6/11.4 | 22.0/17.2 |
| 160×140 | 102 ± 2 | 97 ± 2 | 229 ± 4 | 9.1/8.0 | 14.6/12.8 | 22.0/19.3 |
| 180×125 | 132 ± 2 | 97 ± 2 | 274 ± 4 | 10.2/7.1 | 16.4/11.4 | 24.8/17.2 |
| 180×160 | 132 ± 2 | 104 ± 2 | 276 ± 4 | 10.2/9.1 | 16.4/14.6 | 24.8/22.0 |
| 200×160 | 112 ± 2 | 102 ± 2 | 252 ± 4 | 11.4/9.1 | 18.2/14.6 | 27.6/22.0 |
| 225×160 | 128 ± 2 | 102 ± 2 | 270 ± 4 | 12.8/9.1 | 20.5/14.6 | 31.0/22.0 |
| d 1 ×d 2 | l | SDR33/PN3.2 | SDR17.6/PN6 |
| S 1 /S 2 | S 1 /S 2 | ||
| 63×16 | 54 ± 2 | 3.6/1.8 | |
| 75×32 | 71 ± 2 | 4.3/1.9 | |
| 110×63 | 63 ± 2 | 3.5/2.0 | 6.3/3.6 |
| 125×75 | 72 ± 2 | 3.9/2.4 | 7.1/4.3 |
| 160×110 | 84 ± 2 | 5.0/3.6 | 9.1/6.3 |
| 225×160 | 94 ± 2 | 7.0/5.0 | 12.8/9.1 |
| 315×225 | 132 ± 2 | 9.8/7.0 | 17.9/12.8 |
| 450×315 | 162 ± 2 | 14.0/9.8 | 25.5/17.9 |
| 630×450 | 189 ± 2 | 19.6/14.0 | 35.7/25.5 |
| d 1 ×d 2 | l | SDR11/PN10 | SDR7.25/PN16 |
| S 1 /S 2 | S 1 /S 2 | ||
| 63×16 | 54 ± 2 | 5.8/2.0 | 8.7/2.3 |
| 75×32 | 71 ± 2 | 6.9/3.0 | 10.4/4.5 |
| 110×63 | 63 ± 2 | 10.0/5.8 | 15.2/8.7 |
| 125×75 | 72 ± 2 | 11.4/6.9 | 17.2/10.4 |
| 160×110 | 84 ± 2 | 14.6/10.0 | 22.0/15.2 |
| 225×160 | 90 ± 2 | 20.5/14.6 | 31.0/22.0 |
| 315×225 | 130 ± 2 | 28.7/20.5 | |
| 450×315 | 165 ± 2 | 41.0/28.7 |

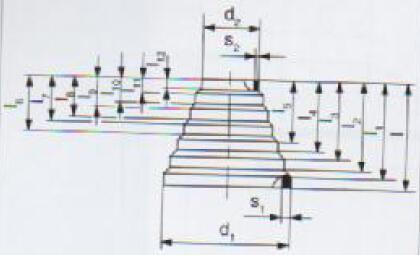

| d 1 | d 2 | l 1 | l 2 | l 3 | l 4 | l 5 | l 6 | l 7 | l 8 | l 9 | l 10 | l 11 | l 12 |
| 63.00 | 16.00 | 47.00 | 35.00 | 33.50 | 26.00 | 24.50 | 19.00 | 17.00 | 13.00 | 11.50 | 9.00 | 7.00 | 4.00 |
| 75.00 | 32.00 | 60.00 | 54.00 | 47.00 | 39.00 | 30.00 | 23.00 | 16.00 | 8.00 | ||||
| 110.00 | 63.00 | 52.00 | 41.00 | 32.00 | 24.00 | 15.00 | 7.00 | ||||||
| 125.00 | 75.00 | 58.00 | 50.00 | 40.00 | 28.00 | 18.00 | 9.00 | ||||||
| 160.00 | 110.00 | 70.00 | 57.00 | 45.00 | 34.00 | 23.00 | 13.00 | ||||||
| 225.00 | 160.00 | 75.00 | 62.00 | 50.00 | 37.00 | 25.00 | 13.00 | ||||||
| 315.00 | 225.00 | 107.00 | 91.00 | 73.00 | 54.00 | 35.00 | 19.00 | ||||||
| 450.00 | 315.00 | 141.00 | 117.00 | 91.00 | 67.00 | 44.00 | 18.00 | ||||||
| 630.00 | 450.00 | 128.00 | 106.00 | 69.00 | 47.00 | 15.00 |
