| 品号 | 尺寸 | 规格 | 材质 | 垫座 | O环 | 蝶片 | 接口 |
| VP-830 | 2″-24 | ANSI,JIS,DIN | PVC | EPDM,FPM | EPDM,FPM | PP | Flanged |
| VP-831 | 2″-24 | ANSI,JIS,DIN | CPVC | EPDM,FPM | EPDM,FPM | CPVC | Flanged |
| VP-833 | 2″-24 | ANSI,JIS,DIN | PVDF | EPDM,FPM | EPDM,FPM | PVDF | Flanged |
| VP-834 | 2″-24 | ANSI,JIS,DIN | PP | EPDM,FPM | EPDM,FPM | PP | Flanged |

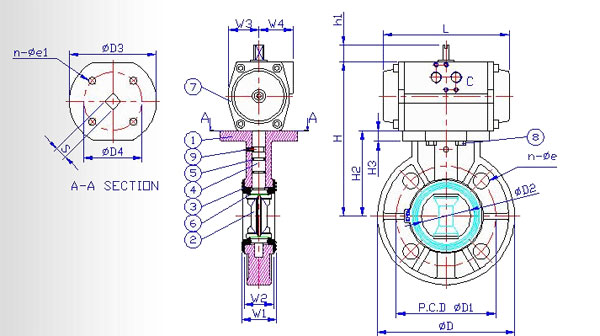

| NO. | PART | MATEPIAL | QTY |
| 1 | 本体 | UPVC，CPVC,PP,PVDF | 1 |
| 2 | 阀门 | CPVC,PP,PVDF | 1 |
| 3 | 垫座 | EPDM,FPM | 1 |
| 4 | 中心柱 | SUS 410 | 1 |
| 5 | O 环 | EPDM,FPM | 2 |
| 6 | O 环 | EPDM,FPM | 2 |
| 7 | 气压缸 | EXTRUDED ALUMINIUM ALLOY | 1 |
| 8 | 螺丝及平华司 | SUS | 4 |
| 9 | 定位销 | SUS | 1 |
| SIZE | 2〞 | 2-½" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" | |
| Nom. | 50mm | 65mm | 80mm | 100mm | 125mm | 150mm | 200mm | 250mm | 300mm | 350mm | 400mm | 450mm | 500mm | 600mm | |
| JIS | D1 | 120 | 140 | 150 | 175 | 210 | 240 | 290 | 355 | 400 | 445 | 510 | 565 | 620 | 730 |
| n-¢e | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 8-23 | 12-23 | 12-25 | 16-25 | 16-25 | 16-27 | 20-27 | 20-27 | 24-35 | |
| ANSI | D1 | 120.39 | 139.44 | 152.4 | 190.5 | 216 | 241.55 | 298.5 | 362 | 432 | 476 | 540 | 578 | 635 | 749 |
| n-¢e | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 8-22 | 12-25 | 12-25 | 12-29 | 16-29 | 16-32 | 20-32 | 20-35 | |
| DIN | D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 | 460 | 515 | 565 | 620 | 725 |
| n-¢e | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-23 | 8-23 | 12-23 | 12-23 | 16-23 | 16-27 | 20-27 | 20-27 | 20-30 | |
| D | 165 | 185 | 200 | 229 | 257 | 285 | 343 | 411 | 490 | 530 | 600 | 630 | 696 | 813 | |
| D2 | 56.5 | 69.5 | 79.5 | 102.5 | 130 | 153 | 203 | 255 | 310 | 360 | 398 | 453 | 502 | 603 | |
| D3 | 105 | 120 | 123 | 135 | 164 | 169 | 201 | 205 | 237 | 236 | 300 | 335 | 335 | 335 | |
| H2 | 103 | 113 | 115 | 135.5 | 165 | 177 | 210 | 242 | 302 | 300 | 350 | 370 | 410 | 465 | |
| H3 | 13 | 13 | 13 | 13 | 15 | 19 | 21 | 22 | 26 | 25 | 32 | 35 | 40 | 46 | |
| W1 | 43 | 46 | 46 | 56 | 69 | 70.5 | 85 | 109 | 133 | 127 | 168 | 189.5 | 189 | 209 | |
| W2 | 29 | 31 | 31 | 40 | 50 | 54 | 69 | 88 | 103.5 | 113 | 153 | 163 | 171 | 191 | |
| T-DIN259 BSP | 1/4〞 | 1/4〞 | 1/4〞 | 1/4〞 | 1/4〞 | 1/4〞 | 1/4〞 | 1/4〞 | 1/4〞 | 1/4〞 | 1/4〞 | 1/2〞 | 1/2〞 | 1/2〞 | |
| ¢d1 | 6.5 | 6.5 | 8.5 | 8.5 | 8.5 | 10.5 | 10.5 | 10.5 | 12.5 | - | - | - | - | - | |
| ¢D4 | 50 | 50 | 70 | 70 | 70 | 102 | 102 | 102 | 125 | - | - | - | - | - | |
| h1 | 20 | 20 | 20 | 20 | 20 | 20 | 30 | 30 | 30 | - | - | - | - | - | |
| DOUBLE | H1 | 188 | 198 | 217 | 237.5 | 280 | 304 | 367 | 399 | 498 | - | - | - | - | - |
| ACTING | L | 158.5 | 158.5 | 210.5 | 210.5 | 247.5 | 268.5 | 345 | 345 | 437.5 | - | - | - | - | - |
| S | 14 | 14 | 17 | 17 | 17 | 22 | 27 | 27 | 27 | - | - | - | - | - | |
| W3 | 36 | 36 | 42 | 42 | 48 | 55 | 66.5 | 66.5 | 81 | - | - | - | - | - | |
| W4 | 47 | 47 | 52 | 52 | 57 | 67 | 82 | 82 | 99 | - | - | - | - | - | |
| ¢d1 | 6.5 | 6.5 | 8.5 | 8.5 | 10.5 | 10.5 | 12.5 | 12.5 | - | - | - | - | - | - | |
| ¢D4 | 50 | 50 | 70 | 70 | 102 | 102 | 125 | 125 | - | - | - | - | - | - | |
| SPRING | h1 | 20 | 20 | 20 | 20 | 20 | 30 | 30 | 30 | - | - | - | - | - | - |
| RETURN | H1 | 205 | 215 | 230 | 250.5 | 292 | 334 | 406 | 438 | - | - | - | - | - | - |
| L | 210.5 | 210.5 | 247.5 | 247.5 | 268.5 | 345 | 437.5 | 437.5 | - | - | - | - | - | - | |
| S | 17 | 17 | 17 | 17 | 22 | 27 | 27 | 27 | - | - | - | - | - | - | |
| W3 | 42 | 42 | 48 | 48 | 55 | 66.5 | 81 | 81 | - | - | - | - | - | - | |
| W4 | 52 | 52 | 57 | 57 | 67 | 82 | 99 | 99 | - | - | - | - | - | - | |
